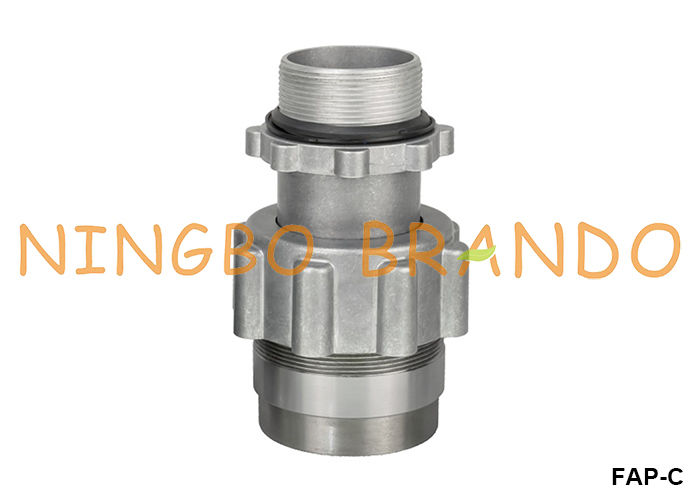

FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve

FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve

  • FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve
FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve
Thông tin chi tiết sản phẩm:
Nguồn gốc: Ningbo, Trung Quốc
Hàng hiệu: BRANDO
Chứng nhận: None
Số mô hình: FAP-C
Thanh toán:
Số lượng đặt hàng tối thiểu: 20pcs
Giá bán: Có thể đàm phán
chi tiết đóng gói: Hộp, carton, pallet
Thời gian giao hàng: 4 đến 7 ngày làm việc
Điều khoản thanh toán: T/T, PayPal, Western Union
Khả năng cung cấp: 100000pcs mỗi tháng
Tiếp xúc
Chi tiết sản phẩm
Tên sản phẩm: Đầu nối vách ngăn Kích cỡ: 3/4 '', 1 '', 1-1/2 '', 2 '' (DN20, DN25, DN40, DN50)
Vật liệu hạt và cơ thể: Nhôm Chất liệu niêm phong và miếng đệm: NBR (Tiêu chuẩn), FKM (Tự chọn)
Làm nổi bật:

Bulkhead Connector FAP-C

,

Pulse Jet Valve Bulkhead Connector

,

Pulse Jet Valve Bulkhead Fitting

FAP-C Bulkhead Connector



A pulse valve bulkhead connector is a specialized adapter that creates a secure, through-wall connection for the pneumatic or electrical components of a reverse pulse jet valve system, commonly used in industrial dust collectors. It acts as a sealed pass-through, simplifying the installation and maintenance of these cleaning valves by eliminating the need for welding and allowing for easy removal of the valve components from one side of the dust collector's housing.

Key Features
1) Various Sizes: available in multiple sizes (e.g., 3/4", 1", 1-1/2", 2'', 2-1/2'', 3'') to match different pulse valves and piping.
2) Material: often made from pressure die-casted aluminum or other robust materials suitable for industrial environments.
3) Sealing: come with specific seals (like NBR or FKM for different temperature ranges) to create a secure seal against the collector wall.



Main Dimension:
FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 0
Model No FAP-C-1-20 FAP-C-1-25 FAP-C-1-40 FAP-C-1-50
DN 20 25 40 50
L 118 130 144 162
L1 110 120 130 144
L2 32 40 42
M G3/4'' G1'' G1-1/2'' G2''
ΦC Φ41 Φ50 Φ66 Φ78



Installation:
FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 1

More Bulkhead Connectors:
FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 2


Our Production:

FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 3



Related Products:

FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 4 FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 5 FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 6 FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 7 FAP-C FAP-C-1 Bulkhead Connector for Dust Collector Pulse Jet Valve 8
Coil Armature Diaphragm Pulse Valve Pulse Controller
