ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal

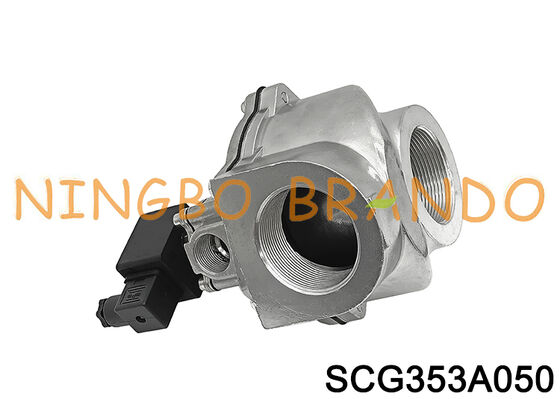

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal

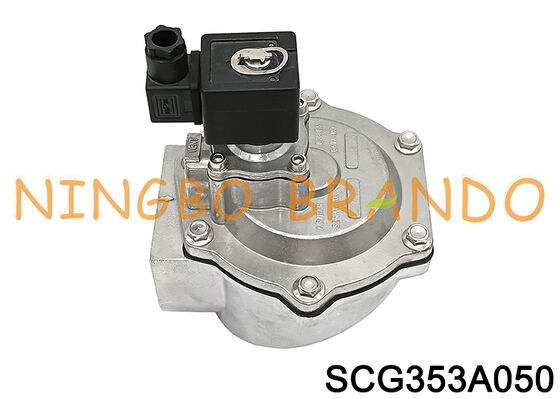

  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal

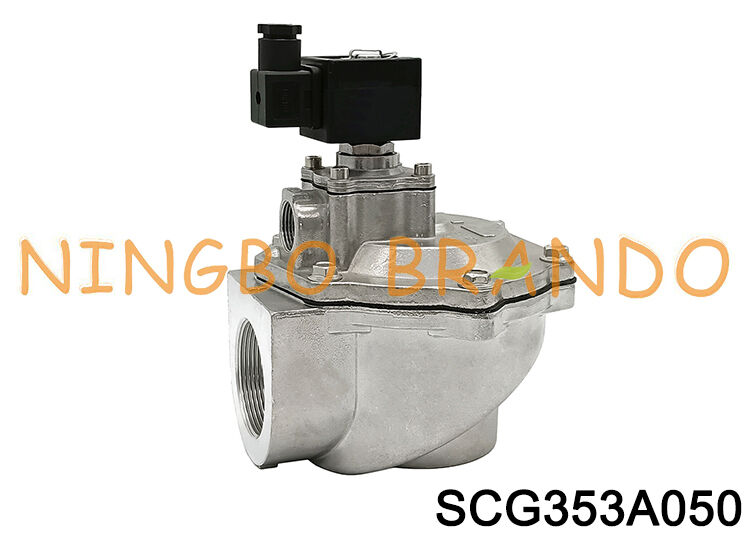

  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal

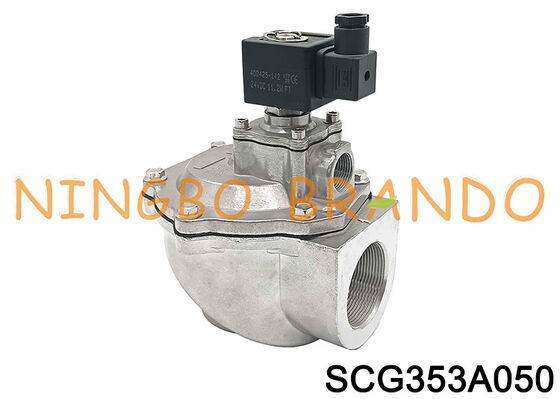

  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Brando
Chứng nhận: CE
Số mô hình: SCG353A050
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: Có thể đàm phán
chi tiết đóng gói: Hộp bên trong, thùng carton, pallet
Thời gian giao hàng: Đàm phán
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây, PayPal
Khả năng cung cấp: 100000 PC mỗi tháng
Tiếp xúc
Chi tiết sản phẩm
Tên sản phẩm: Van phản lực xung Kích thước cổng: 2 inch
từ xa hoặc tích hợp: thí điểm tích hợp Vật liệu cơ thể: Nhôm
Vật liệu cơ hoành: NBR Phạm vi áp suất: 0,3 đến 0,8MPa
Loại van: Góc vuông Điện áp: 220VAC, 24VDC
Làm nổi bật:

SCG353A050 Pulse Valve

,

2'' Pulse Jet Valve

,

ASCO SCG353A050

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal


Pulse jet valves are for controlling air pulses in dust collectors. Aluminium diecast 2-way valves are high flow, diaphragm operated angle body specially designed for reverse jet type dust collectors. The designs have a spring construction with only one moving part, high flow long life and fast opening combine to offer a superior design for the dust collector systems. The high-speed operation not only saves the compressed air but it provides the kind of shock wave necessary to free the dust from filter bags. Valves are offered in both integrated and remote coil configurations.


Features:
1. High quality NBR diaphragm for longer life
2. High flow factor for effective cleaning
3. Valve can be mounted in any position
4. Quick on & off response time


Technical Data of 353 Series Pulse Jet Valves:

Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Voltages
220VAC, 24VDC


Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.


Dimension of SCG353A050 Pulse Jet Valve:

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 0


Video of SCG353A050 Pulse Jet Valve:


More ASCO Type Pulse Valve For You to Choose:

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 1ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 2ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 3

           Right Angle Type                        Remote Pilot Type                       Immersion Type

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 4ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 5ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 6ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 7

            Diaphragm                     Solenoid Coil                Armature Assembly            Pulse Controller
