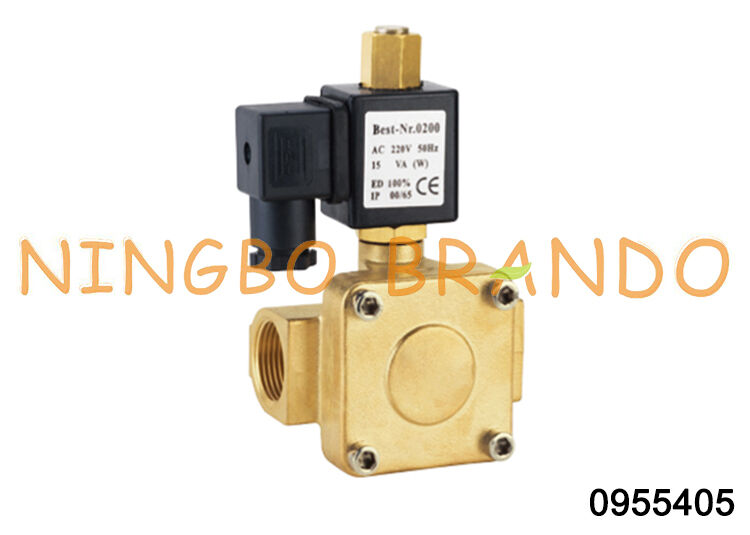

0955405 3/4'' 2 Way NO AC220V Screw Air Compressor Solenoid Valve

0955405 3/4'' 2 Way NO AC220V Screw Air Compressor Solenoid Valve

Product Features:

1. Working Medium: Water, Air, Gas, Light Oil, etc
2. Working Pressure Range: 0.07 to 1.6 MPa
3. Medium Temperature Range: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
5. Orifice Size: 8mm, 10mm, 12mm, 20mm, 25mm, 32mm, 40mm, 50mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
9. Function: 2 Way Normally Closed, 2 Way Normally Open
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
